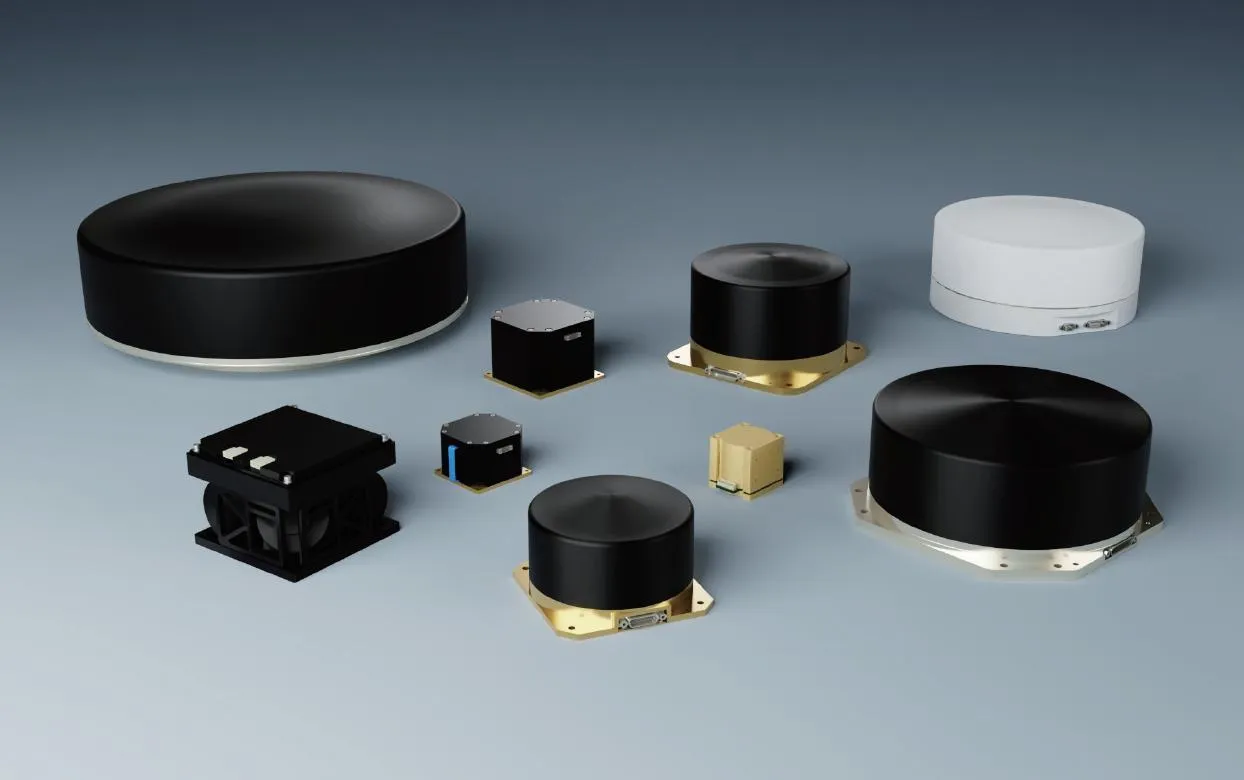

Attitude and Orbit Control System: The "Intelligent Brain" for Precise Operation of LEO Satellites
Introduction
In low Earth orbits hundreds of kilometers above the Earth, LEO satellites must navigate the complex space environment to achieve precise attitude adjustment and orbit maintenance—all of which relies on the Attitude and Orbit Control System (AOCS). As a key subsystem accounting for 12%–15% of the total satellite cost, the AOCS is not only the core that ensures satellites stay stable and point accurately, but also the foundation for the efficient execution of space missions. This paper provides an in-depth analysis of the composition, technical principles and cost structure of the AOCS.
![Attitude and Orbit Control System: The "Intelligent Brain" for Precise Operation of LEO Satellites](https://images.exportstart.com/images/a1371/2222-689.webp "Attitude and Orbit Control System: The "Intelligent Brain" for Precise Operation of LEO Satellites")
I. Core Components: A Closed-Loop System of "Sensing-Execution-Decision-Making"
Through the closed-loop collaboration of attitude sensors (sensing) - actuators (execution) - control algorithms and software (decision-making), the AOCS achieves precise satellite control, with the three modules performing their dedicated functions and none being dispensable:
1. Attitude Sensors: The "Eyes" of a Satellite
Attitude sensors are responsible for real-time monitoring of satellite attitude information and providing data support for control decisions. The mainstream types include:
- Star trackers: Determine the satellite attitude by observing fixed stars, with an accuracy of arcsecond level, making them the most precise attitude measurement devices available today. The unit price of a star tracker produced by Wuxi Tanyun Electromechanical Co., Ltd. is approximately 400,000 RMB per unit.
- Gyroscopes: Measure the angular velocity of satellites, including fiber optic gyroscopes and MEMS gyroscopes. They feature relatively low costs but have drift characteristics and require regular calibration.
- Sun sensors/Earth sensors: Assist in determining the relative attitude of satellites by observing the sun and the Earth’s infrared radiation, respectively.
Attitude sensors account for 30%–40% of the AOCS cost, ranging from 1 to 1.5 million RMB. Cost differences mainly stem from accuracy requirements and technical types—high-precision star trackers, despite their high manufacturing costs, provide the most reliable attitude data for satellites and are the first choice for high-performance satellite missions.
2. Actuators: The "Limbs" of a Satellite
Actuators generate control torques according to control commands to realize attitude adjustment and orbit maintenance. The core types include:
- Reaction wheels: Based on the principle of conservation of angular momentum, they generate reaction torques by changing rotational speed. As the most commonly used actuators for attitude control, they offer the advantages of precise control and no propellant consumption, making them suitable for long-duration missions.
- Magnetic torquers: Utilize the Earth’s magnetic field to generate control torques, mainly used for momentum unloading and small-angle attitude adjustment.
- Thrusters: Generate thrust by ejecting propellants, applied for large-angle attitude maneuvering and orbit control.
The attitude control system of the Starlink V2.0 Mini is equipped with three magnetic torquers and four reaction wheels. Taking products from Nanjing Lanyue Electromechanical Co., Ltd. as an example, its FW0015B reaction wheel has a maximum rotational speed of ±6200rpm, a rated speed of 6000rpm, and a maximum control torque of ≥2.5mNm@0.6A, which can meet the application requirements of micro/nano satellites under 1000kg. In terms of costs for this module, reaction wheels account for 40%–50% of the AOCS cost (1.5 to 2 million RMB), and magnetic torquers account for 10%–15% (300,000 to 500,000 RMB).
3. Control Algorithms and Software: The "Brain" of a Satellite
Control algorithms form the core of the AOCS, responsible for calculating control commands based on attitude errors, and mainly include:
- Attitude determination algorithms: Fuse multi-sensor data to calculate the precise attitude of satellites.
- Control law design: Design control torques according to attitude errors and mission requirements.
- Momentum management algorithms: Address the saturation problem of reaction wheels and design momentum unloading strategies.
- Fault diagnosis and fault-tolerant control: Detect and handle malfunctions of sensors and actuators.
The cost of control software accounts for 15%–20% of the AOCS cost (500,000 to 800,000 RMB), covering algorithm design, software development, testing and verification. Currently, intelligent control algorithms based on machine learning have become a research hotspot, which is expected to further improve control accuracy and environmental adaptability.
II. Technical Core: The Dual Pursuit of Precision and Reliability
1. High-Precision Control: Meeting the Requirements of Complex Missions
LEO communication satellites need to point accurately to ground terminals, and remote sensing satellites must align precisely with observation targets. This requires the AOCS to achieve an attitude control accuracy of arcsecond level. The combination of star trackers and reaction wheels is the core solution to achieve this precision—star trackers provide high-precision attitude measurement, while reaction wheels deliver continuous and accurate control torques.
2. High-Reliability Design: Withstanding the Harsh Space Environment
Factors such as radiation and extreme temperature differences in the space environment can affect the performance of sensors and actuators. Therefore, the components of the AOCS must undergo rigorous environmental testing, and the control algorithms need to have fault-tolerant capabilities to ensure that the system can still maintain basic functions in the event of a single component failure.
3. Lightweight and Low Power Consumption: Adapting to Satellite Design Requirements
LEO satellites have stringent requirements for weight and power consumption, so the components of the AOCS must be as lightweight as possible while ensuring performance. For example, MEMS gyroscopes have significantly lower weight and power consumption compared with traditional fiber optic gyroscopes, and have become an important choice for small LEO satellites.
III. Cost Composition and Optimization Trends
1. Characteristics of the Cost Structure
The total cost of the AOCS ranges from 3.8 to 4.8 million RMB, with reaction wheels being the largest cost item, accounting for 40%–50%; followed by attitude sensors, accounting for 30%–40%. The main cost drivers include technological maturity, accuracy requirements and redundant design—highly redundant designs (such as backup sensors and wheels) can improve reliability but will significantly increase costs.
2. Optimization Paths: Technological Innovation and Mass Production
- Application of MEMS technology: The maturity of devices such as MEMS gyroscopes and MEMS accelerometers will further reduce the weight and cost of sensors.
- Large-scale mass production: With the increase in the output of commercial aerospace satellites, the mass production of components such as reaction wheels and magnetic torquers will reduce the unit cost by more than 30%.
- Algorithm optimization: Reducing reliance on high-precision hardware through intelligent algorithms, while ensuring control accuracy and lowering hardware costs.
IV. Industrial Significance: The AOCS is the Key to the Success of Satellite Missions
Whether it is signal coverage for satellite internet or image acquisition for remote sensing satellites, none is possible without the precise control of the AOCS. Against the backdrop of the large-scale deployment of commercial aerospace, high precision, high reliability and low cost have become the core competitiveness of the AOCS—its technological innovation will directly drive the expansion of LEO satellite applications, providing more stable and efficient support for fields such as satellite internet, emergency communication and geographic information services.
