GF Series Satellites With A Resolution Of 0.75m

GF satellites with a resolution of 0.75m are the new generation optical remote sensing satellites independently researched and developed by the Company. These satellites are designed with light weighted structure, highly integrated electronics system, high-resolution ultra-light weighted camera and other innovative technologies. These satellites have the features of low cost, low power consumption, lightweight and high indicator.

DESCRIPTION

Jilin No.1 Scored 03 Stars

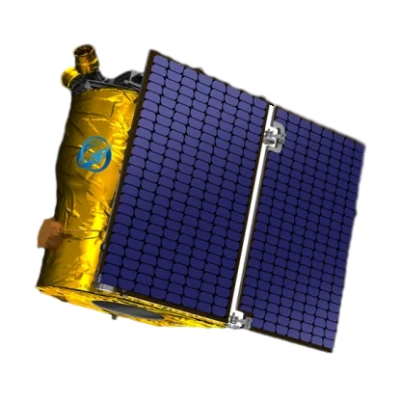

Jilin-1 GF03D Satellites

Name	Jilin-1 GF03D
maging mode	Push-broom and inertial space imaging
Resolution	0.75m
Spectral Coverage	Full color: 450nm~700nm Blue: 430nm~520nm Green: 520nm~610nm Red: 610nm~690nm Near-infrared light: 770nm~895nm
Swath width (at Nadir)	17km
Weight	≈40kg

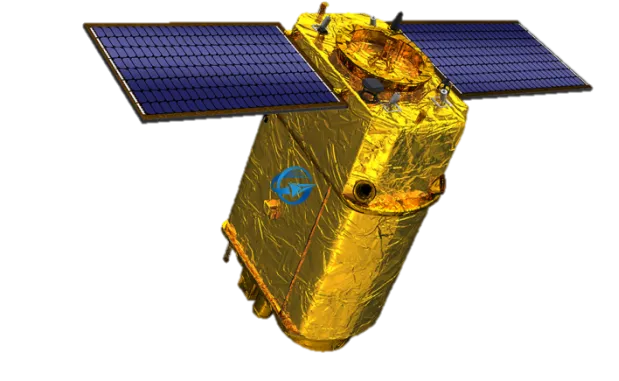

Jilin-1 GF02 Satellites

Jilin-1 GF02 satellites are the high-resolution remote sensing satellites with 0.75m resolution，it were developed by CGSTL, and have the characteristics of high resolution, large width, and high-speed data transmission.

Jilin-1 GF02

Name	Jilin-1GF 02
maging mode	Push-broom and inertial space imaging
Resolution	0.75m
Spectral Coverage	Full color：450nm～800nm Blue：450nm～510nm Green：510nm～580nm Red：630nm～690nm Near-infrared：770nm～895nm
Swath width (at Nadir)	40km
Weight	≈200kg

Jilin No.1 Scored 06 Stars

GF series satellites represented by Jilin-1 GF-06 are the batch production satellite model of CGSTL oriented to sub-meter high resolution optical remote sensing. Jilin-1 GF06 have the advantages of “fast batch production”, “intelligent operation” and “brilliant image quality and low price”

Name	Jilin-1GF 06
maging mode	Push-broom、Video imaging
Resolution	0.75m
Spectral Coverage	Panchromatic：450nm～700nm Blue：430nm-520nm Green：520nm-610nm Red：610nm-690nm Near-infrared：770nm-895nm
Swath width (at Nadir)	18km
Weight	≈20kg
