Sitall Reflection Mirror

Using advanced robotic CNC processing as the primary method, combined with ion-beam, polishing, and milling machines, it can achieve customized and batch production of large-aperture, high-precision, asymmetric- spherical surface and aspherical microcrystalline reflective mirrors.

DESCRIPTION

Products Detail

Reflective Mirror Diameter Range	Φ 50 mm - 600 mm
Reflective Mirror Surface Shape	RMS: Better than 1/60 λ ( λ = 632.8 nm)
Surface Roughness	<2 nm
Supply Cycle	1 - 2.5 months

Product Examples

Reflective Mirror Diameter (D)	Ø440mm
Surface Feature	Coaxial Aspherical Surface
Lightweight Form	Counterbore
Cycle	2.5 months

Reflective Mirror Diameter (D)	Ø510mm
Surface Feature	Coaxial Aspherical Surface
Lightweight Form	Wedge
Cycle	2.5 months

component use

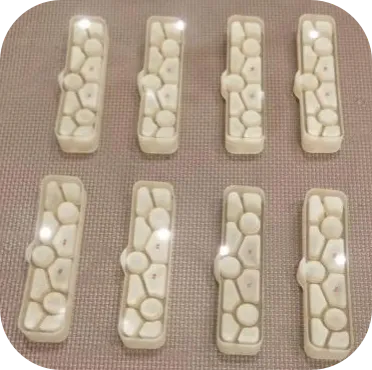

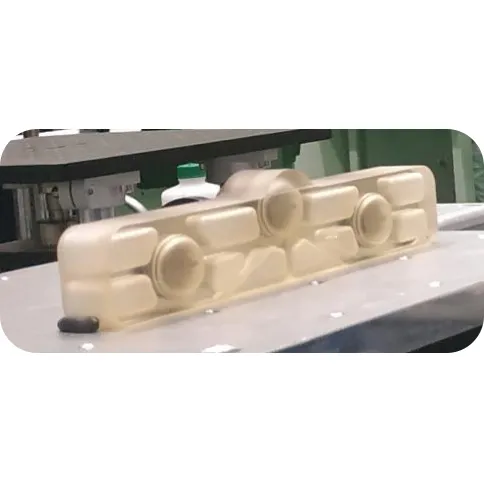

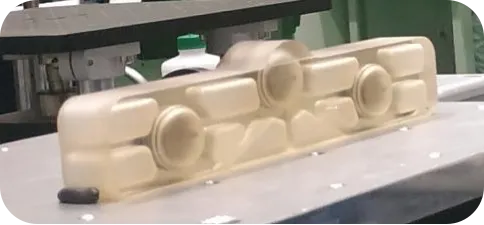

Reflective Mirror Diameter (D)	156×40mm
Surface Feature	Off-axis Aspherical Surface
Lightweight Form	Counterbore
Cycle	1 month

satellite parts

Reflective Mirror Diameter (D)	Ø116mm
Surface Feature	Convex Aspherical Surface
Lightweight Form	Ribbed + Asymmetric Shape
Cycle	1.25 months (0.5+2+2+0.5 weeks)
