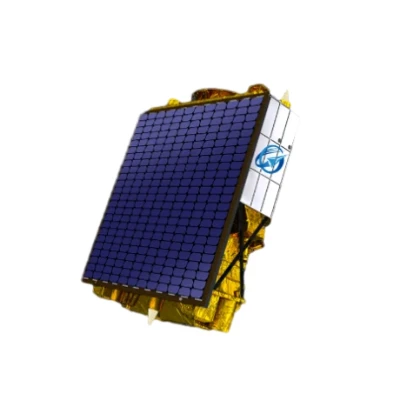

Multispectral GP Satellite

GP series satellites with a resolution of 5m carry imagers for multiple optical paths, and carry the loads of infrared cameras for short wave, medium wave and long wave, etc. These satellites have the features of broadband, multispectrum, large breadth and ultra-high speed transmission, etc.

DESCRIPTION

Products Detail

Jilin-1 GP

Name	Jilin-1GP
maging mode	Push-broom, Night-time, Inertial space imaging
Resolution	VNear-infrared visible light: 5m Short-wave and middle-wave infrared light: 100m; Long-wave infrared light: 150m
Spectral Coverage	B0:450nm-800nm B1:403nm-423nm B2:433nm-453nm B3:450nm-515nm B4:525nm-600nm B5:630nm-680nm B6:784.5nm-899.5nm B7:485nm-495nm B8:615nm-625nm B9:650nm-680nm B10:698.75nm-718.75nm B11:732.5nm-747.5nm B12:773nm-793nm B13:855nm-875nm B14:660nm-670nm B15:677.5nm-685nm B16:750nm-757.5nm B17:758.75nm-762.75nm B18:935nm-955nm B19:1000nm-1040nm SW1:1195nm-1225nm SW2:1360nm-1390nm SW3:1550nm-1590nm SW4:1610nm-1690nm MW:3700nm-4950nm LW:7500nm-13500nm
Swath width (at Nadir)	110km
Weight	≈200kg
