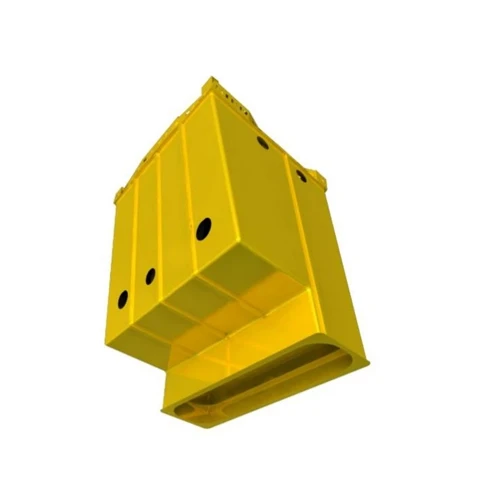

Large Swath Camera with Width of 150km

The camera wide in width with a swath width of 150km adopts off-axis three-mirror optical system, having the characteristics of high resolution and super wide width.

DESCRIPTION

Products Detail

The camera wide in width with a swath width of 150km adopts off-axis three-mirror optical system, having the characteristics of high resolution and super wide width.

Product code	CG-PL-HR-0.5m-150km
Imaging mode	Push-broom imaging
Resolution	0.5m
Swath width (at Nadir)	≥150km
Spectral Coverage	panchromatic: 450nm-700nm blue: 430nm-510nm green: 510nm-580nm red : 630nm-690nm NIR: 740nm-895nm
Signal-to-noise ratio	30dB
Data rate	19.2Gbps
Appearance and dimension	1958mmx1653mmx2440mm
Power consumption	≤1030W
Weight	600kg heavyweight

We are interested in your Wide-Width Camera (150km swath).

Please provide technical details and pricing.

Ultra-Wide Swath Camera (150km Coverage)

Extensive Coverage Area

Captures large regions in a single shot.
Optimized for Mapping

Ideal for geographic and environmental monitoring.
High Optical Precision

Ensures accurate, distortion-free imaging.
Advanced Sensor Technology

Maintains high image quality across the entire swath.
