Sgàthan meòrachail Silicon Carbide

dhachaidh > Bathar >Comh-phàirt >Co-phàirtean saideal > Sgàthan meòrachail Silicon Carbide
Silicon Carbide Reflective Mirror

Sgàthan meòrachail Silicon Carbide

Using advanced robotic CNC processing as the primary method, combined with ion-beam, polishing, and milling machines, it can achieve customized and batch production of large-aperture, high-precision, asymmetric- spherical surface and aspherical silicon carbide reflective mirrors.

Roinn:
Cuir fios thugainn a-nis > Luchdaich sìos
TUAIRISGEADH

Mion-fhiosrachadh air bathar



Reflective Mirror Diameter

Φ 50mm-1200mm

Reflective Mirror Surface Shape

RMS: Better than 1/60 λ  ( λ =  632.8 nm)

Surface Roughness

<2.5 nm

Cearcall solair

2-6 months



Product Example

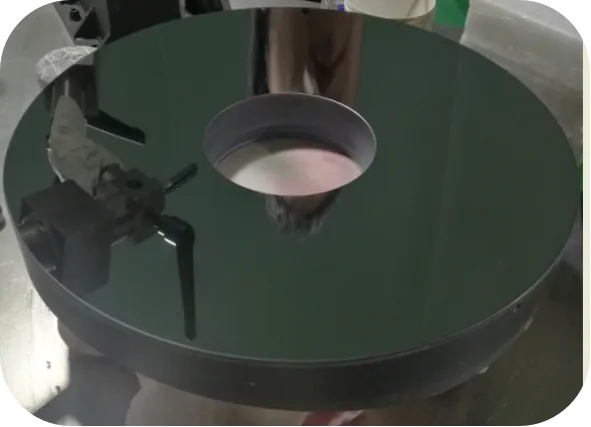

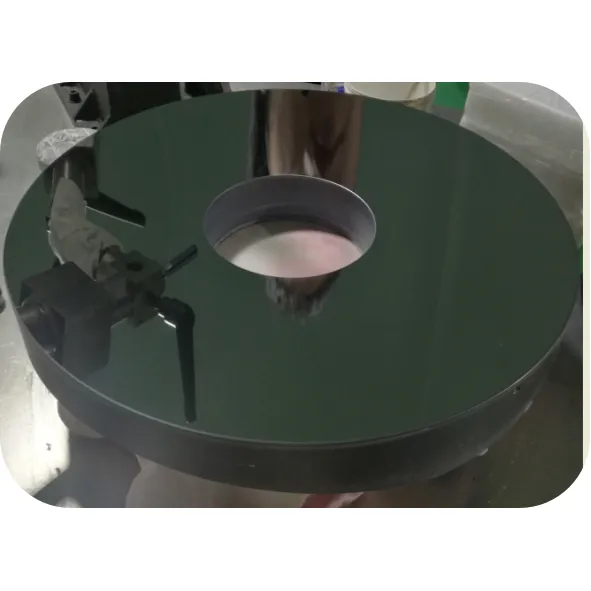

camera mirrors



Reflective Mirror Diameter (D)

Ø440mm

Surface Feature

Coaxial Aspherical Surface

Lightweight Form

Back

Cycle

3 mìosan

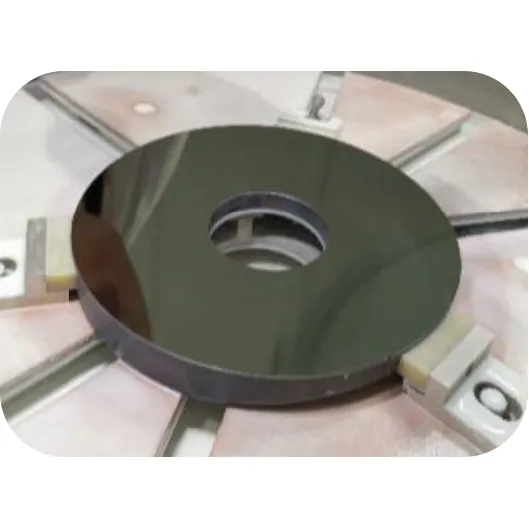

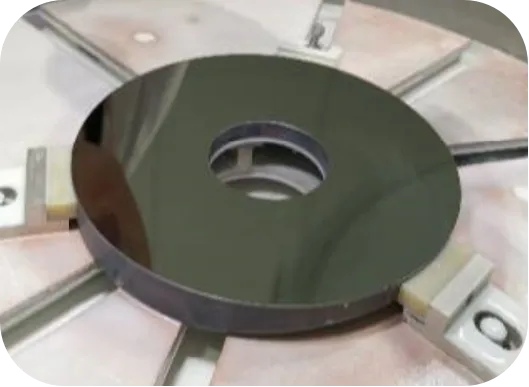

component



Reflective Mirror Diameter (D)

Ø266mm

Surface Feature

Coaxial Aspherical

Lightweight Form

Back

Cycle

2.25 months

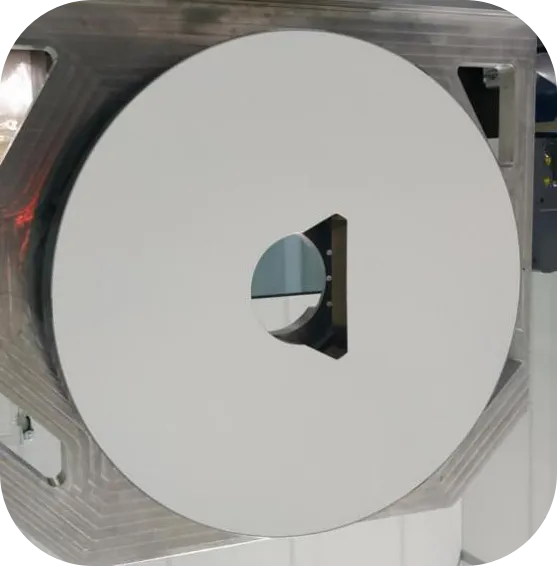

component types



Reflective Mirror Diameter (D)

Ø510mm

Surface Feature

Coaxial Aspherical Surface

Lightweight Form

Back + Asymmetric Center Hole

Cycle

3.5 months

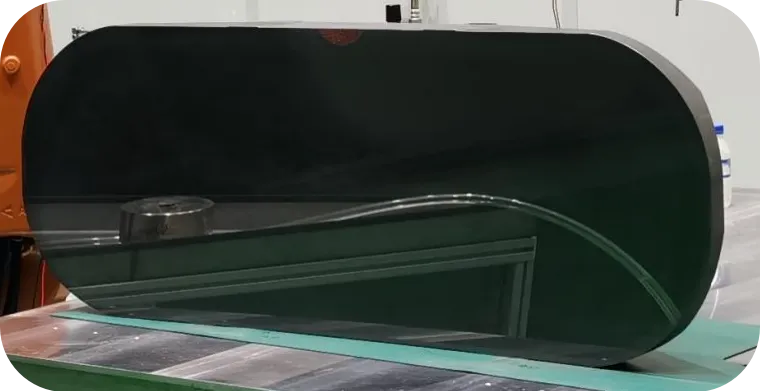

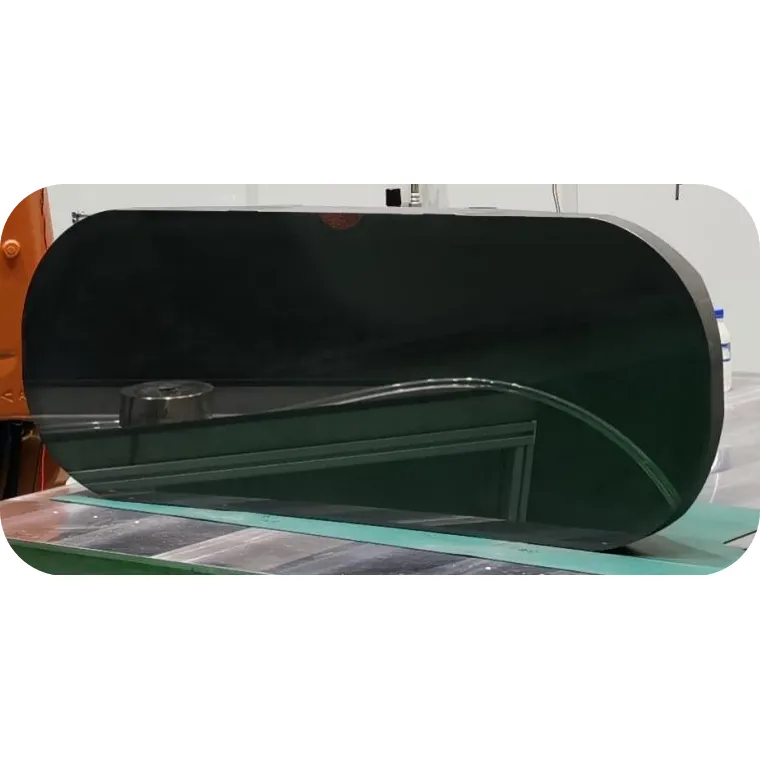

component use



Reflective Mirror Diameter (D)

1270×482mm

Surface Feature

Off-axis Aspherical Surface

Lightweight Form

Back

Cycle

5.75 months (2+10+3+6+2)



Please provide technical details and pricing

for your Silicon Carbide Reflective Mirror.
