Технически спецификации на UAV от серия Changguang TW

TW 07 (Electric)

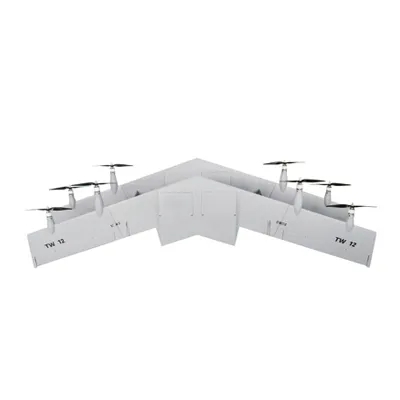

TW 12 (Electric)

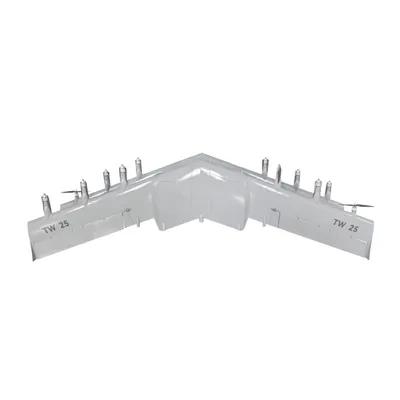

TW 25 (Electric)

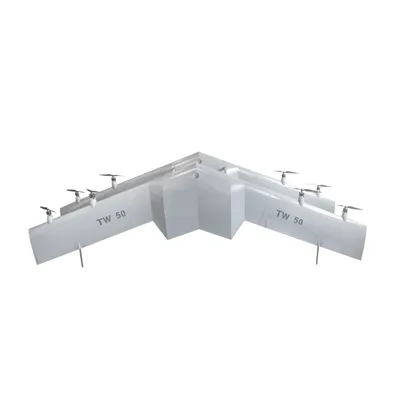

TW 50 (Electric)

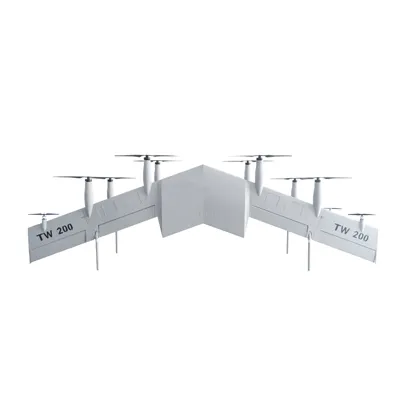

TW 200 (Electric)

Wingspan

1.62m

2.20m

2.98m

3.68m

5.88m

Overall Dimensions

1.62*0.37*0.47m

2.20*0.45*0.68m

2.98*0.63*0.90m

3.68*0.68*1.14m

5.88*1.36*1.85m

Folded Dimensions

0.67*0.37*0.39m

1.10*0.45*0.50m

1.40*0.63*0.63m

1.90*0.68*0.76m

4.06*1.36*1.25m

Maximum Takeoff

7kg

13.2kg

25kg

50kg

200kg

Maximum Payload Capacity

1 кг

2kg

5kg

10kg

70kg

Maximum Flight Endurance

2h 10min

(Unloaded)

1h 40min

(With payload up to 10x triple EO/IR/Laser pods)

3h 20min

(Unloaded)

2h 40min

(With payload up to 10x triple EO/IR/Laser pods)

5h 20min

(Unloaded)

4h

(With payload up to 40x triple EO/IR/Laser pods)

6h 30min

(Unloaded)

5h

(With payload up to 40x triple EO/IR/Laser pods)

8h

(Unloaded)

7h 30min

(With payload up to 40x triple EO/IR/Laser pods)

Cruising Speed

66~72km/h

60~72km/h

60~72km/h

65~90km/h

72~110km/h

Maximum Flight Speed

180km/h

152km/h

152km/h

150km/h

150km/h

Hovering Time

15min

16min

20min

—

—

Wind Resistance Level

Wind Resistance: Level 6 (Takeoff/Landing Phase) | Level 7 (Cruise Phase)
(Customizable up to Level 8)

Service Ceiling

5500m

6000 m

Operating Temperature Range

Operating Conditions: -20℃ to +65℃ with light rain capability
(Low-temperature extension available down to -40℃)

Maximum Ascent Rate

20 m/s

10 m/s

Maximum Descent Rate

5 m/s

3 m/s

Positioning Accuracy

Positioning Accuracy: 0.5m

(Customizable to RTK 1cm / PPK 1mm)

Control Range

30km

30km

30/50km

30/50/100km

30/50/100/200km

Transportation Method

Backpack/Aviation Case

(Single-operator Portable Configuration)

Compact Aviation Case

(Passenger Vehicle Transport Optimized)

Extended Aviation Case

(Cargo Van Transport Ready)

Packaging Dimensions

0.69*0.43*0.47 m

1.18*0.52*0.58 m

1.42*0.69*0.68 m

1.92＊0.71＊1.17m

4.08＊1.40＊1.42m
